TaiSugar's

Circular Village

By Bio-architecture Formosana

台糖循環聚落



BRIEF

Taiwan Sugar Corporation × Circular Economy

Circular economy is an important policy in our country's current development. Taiwan is a densely populated country that lacks resources like food, energy, and other raw materials. For that matter, we rely quite heavily on imports. Therefore, in the midst of rapid economic development, we must remember to reduce wastage and misallocation of resources, let the abandoned by-products return to the resource circular system, continue to recycle, and also take responsibility for environmental protection. Taiwan Sugar Corporation takes actions to align with national policies. To tie in with government’s “Shalun Green Energy Science City” development, the Company has planned a high-quality environmentally friendly residential that provides for more than 400 apartments in Shalun which is only minutes away from Tainan HSR Station. The buildings are well-ventilated and naturally lit to reduce the energy consumption. It is hoped that this project can instill circular concept, such as flexible configuration, building as materials bank, expose-pipe design and combined with safety control system, smart electricity, water network, self-cultivated food and other environmental living systems which is in line with the overall policy of the Science City master plan.

Circular Economy

A circular economy is an economic and industrial system in which resources are restorative and regenerative: Unlike the linear economy, a circular economy utilizes renewable energy to create more value with fewer resources.

Map

The site is located in Qu Hui Renwu District section in Tainan. It is inside the Tainan High Speed Rail developing area. The main transportation to downtown and other cities included National Highway, Taiwan Railway Sharon line, and High Speed Rail.

Partnership

Partnership that involve various areas is the key to archive the goal to build the first circular village in Taiwan. It is a network that invite architect, planner, engineer, academic, resident, government to work locally and creatively.

Location

The site is 10 minutes away from Tainan High Speed Rail station. The site area is 13,994.07 square metre. The surrounding public facility inclued National Chiao Tung University Tainan campus and green energy science park.



VISION

Circularity

VISION

Homely + Co-Home + Farm + Sustainability

Sustainability

VISION

Engineering and facilitating the development of integrated and resilient neighborhoods that power and feed self reliant families that must be addressed. It will be the first circular village in Taiwan and be a role model for sustainable design area.

3 ZEROs

Healthy Living Environment

Healthy Living Environment

With the most suitable space for building, fresh air ventilation, brightly lit space, interior temperature control and non-toxic building materials, we hope to create a mentally and physically healthy living space.

Urban Agriculture

By kitchen waste composting, rain water collection, and aquaponics the urban agriculture in circular village is not just related to farming culture but also ecology protection, food safety and social network.



GOAL

Resource Management

Produce

Require

Rate

Circular System

Circular System

The circular village is a self-sufficient neighborhood in food resource and energy system. It will be a zero emission, zero waste and zero accident community.



SHARING

Co-Farming

Co-Farming

The roof garden not only provide green space for entertainment, but also a city farm for resident to work together cultivating organic food.

Co-Learning

Co-Learning

The Demo house will be a public space for resident and visitors from worldwise to share the knowledge, life experience, cultue and new technology.

Co-Living

Co-Living

The village provides several good interior and semi-outdoor space for resident. It is more than a public space and will become a living memory collector.



BAMB

Buildings As Material Banks

LifeCycle

Things

1-10 years

Foundation

100 years

Partition

10-30 years

Facade

30-50 years

Structure

50-100 years

Material Bank is a idea to collect the material in the buildings. We divide the building to five catalogs, and research the material and equipment to fit the BAMB cocept.

Material Passport

System(MEP/HVAC)
Facade / Partition
Structure

System(MEP/HVAC)

Facade / Partition

Structure

By BIM technology we could collect the material data in a more complete and efficient way from design phase to construction. It will be a database for BAMB in the future.

Construction Process

Foundation
Structure

Foundation

Structure

Adding
Facade

Facade

Adding

Construction would be divides to four parts : foundation, structure, facade and final adding. We design flexible system for future to exchange material or growth easiliy.

Module Design

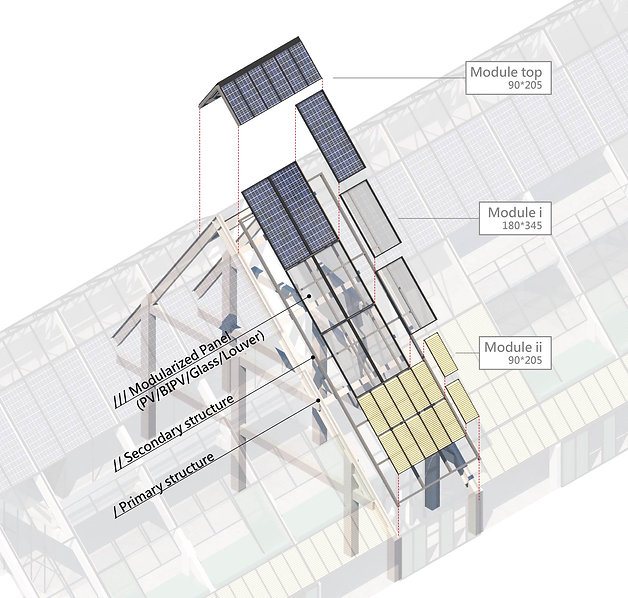

Modular design is applied from main structure to details such as window frame, sun shading louver…etc. Thus, each pieces is easy to assemble / disassemble and classify in material bank.

Rental Item



STATUS

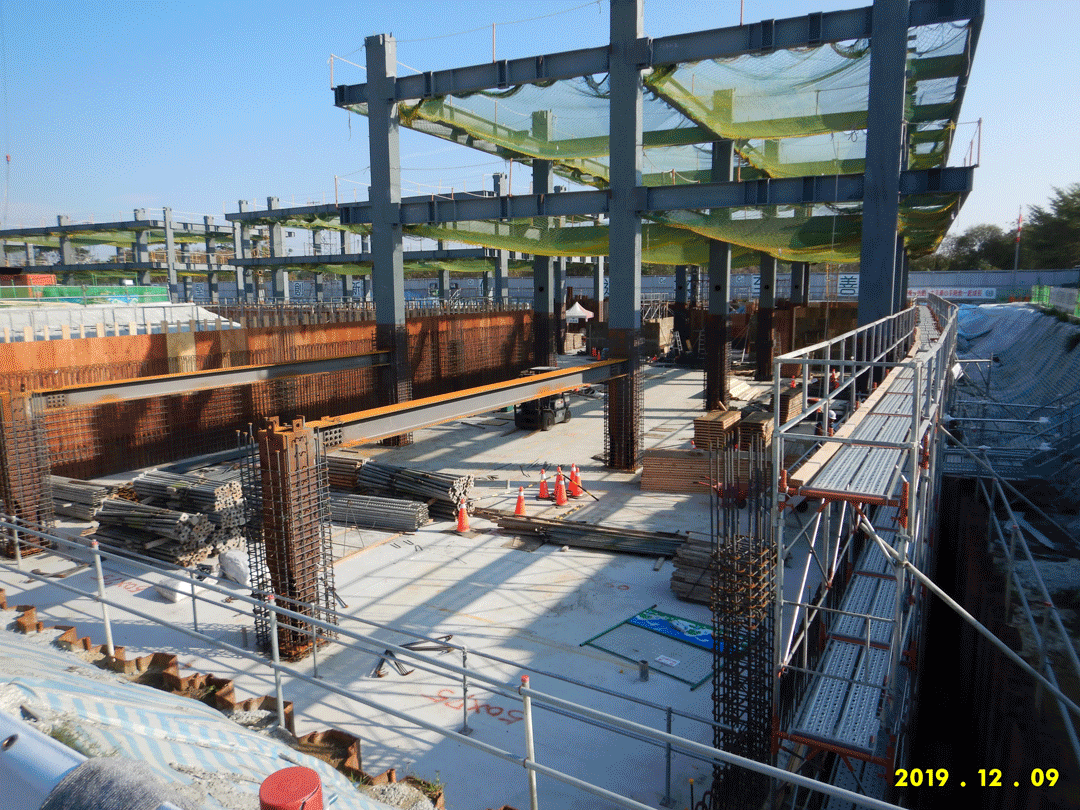

The Villages went viral around the Taiwan after successful press announcement in 2017. In the past couple of weeks we kept working on detail and construction design drawing.
